Introduction:

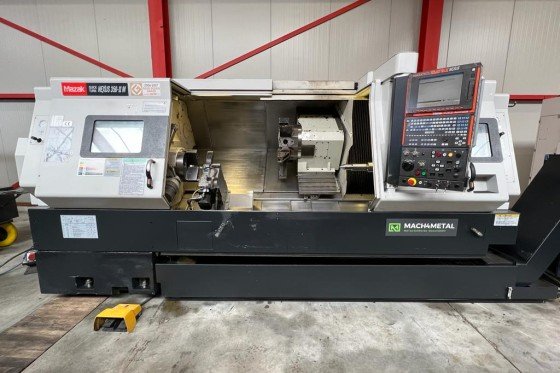

Mazak is a well-known brand in the manufacturing industry, particularly in the field of CNC machine tools. A Mazak lathe is a type of lathe machine that is designed and manufactured by the Mazak Corporation. Mazak lathes are known for their precision and high-quality construction, and they are used in a wide range of industries for cutting and shaping various types of materials.
Mazak lathes are equipped with advanced technology such as CNC (Computer Numerical Control) systems, which allows for precise and automated control of the cutting process. They come in various sizes and models, including vertical and horizontal lathes, as well as multi-tasking lathes that can perform several different operations in a single setup.
Some of the key features of Mazak lathes include their ability to handle large workpieces, their high speed and accuracy, and their ability to perform complex operations with ease. Mazak lathes are also known for their reliability and ease of use, making them a popular choice for both large manufacturing facilities and small shops.
Overall, a Mazak lathe is a high-quality machine tool that is designed for precision and efficiency in the manufacturing process.
Working Principle Of Mazak Lathe:
The working principle of a Mazak lathe is based on the process of turning, which involves cutting and shaping a workpiece using a rotating cutting tool. The basic components of a Mazak lathe include the bed, the headstock, the tailstock, the carriage, and the cutting tool.
The bed is the base of the machine and provides a stable foundation for the other components. The headstock contains the spindle, which rotates the workpiece, and the motor, which drives the spindle. The tailstock supports the opposite end of the workpiece and can be moved along the bed to adjust the length of the workpiece.
The carriage is mounted on the bed and moves along the length of the bed, carrying the cutting tool. The cutting tool is mounted on a tool holder, which can be adjusted to change the position and orientation of the tool. The cutting tool is typically made of high-speed steel or carbide and is designed to remove material from the workpiece.
During operation, the workpiece is clamped in the spindle and rotated at a constant speed by the motor. The cutting tool is then brought into contact with the workpiece by the carriage, and material is removed as the tool moves along the length of the workpiece. The depth of cut, feed rate, and tool position can all be adjusted to control the cutting process and achieve the desired shape and size of the workpiece.
In a Mazak lathe, the cutting process is controlled by a CNC (Computer Numerical Control) system, which allows for precise and automated control of the cutting tool. The CNC system uses programming instructions to control the movement of the cutting tool and other machine functions, such as spindle speed and coolant flow. This allows for highly accurate and repeatable cuts, even on complex workpieces.
Parts Of Mazak Lathe:
A Mazak lathe is a complex machine that consists of numerous components and parts that work together to perform the cutting and shaping of a workpiece. Some of the main parts of a Mazak lathe include:
Bed:
The base of the lathe that supports all the other components.
Headstock:
The part of the lathe that houses the spindle and motor. It rotates the workpiece and provides power to the cutting tool.
Tailstock:
The part of the lathe that supports the other end of the workpiece and can be adjusted along the bed to accommodate different lengths of workpieces.
Carriage:
The part of the lathe that moves along the bed and carries the cutting tool.
Tool turret
: A part of the lathe that holds multiple cutting tools and can rotate to change the position of the tool in use.
Chuck:
A device that holds the workpiece in place while it rotates.
Tool holder
: A component that holds the cutting tool in place and can be adjusted to control the position and orientation of the tool.
Spindle:
The part of the lathe that rotates the workpiece.
Motor:
Provides power to the spindle and other components of the lathe.
Control panel:
A panel that allows the operator to control the machine and set various parameters, such as spindle speed, feed rate, and depth of cut.
Coolant system:
A system that circulates coolant to the cutting tool to lubricate and cool it during the cutting process.
These are just some of the main parts of a Mazak lathe, and there are many other components and sub-assemblies that make up the machine. Overall, a Mazak lathe is a complex and precise machine that requires careful assembly, maintenance, and operation to achieve optimal performance.
Use Of Mazak Lathe:
Mazak lathes are versatile machines that are used in a wide range of industries for cutting and shaping various types of materials, including metal, plastic, and wood. Some of the main uses of Mazak lathes include:
Turning:
The most common use of a Mazak lathe is for turning, which involves removing material from a cylindrical workpiece to create a desired shape and size.
Drilling:
A Mazak lathe can also be used for drilling holes in a workpiece.
Boring:
Boring is a process of enlarging an existing hole in a workpiece, and Mazak lathes are capable of performing this operation.
Threading:
Mazak lathes can cut threads on a workpiece, which is essential for creating bolts, screws, and other threaded components.
Taper turning:
A Mazak lathe can be used to create tapered shapes, such as cones or wedges.
Facing:
Facing is the process of cutting a flat surface on the end of a workpiece, and Mazak lathes can perform this operation.
Mazak lathes are used in a variety of industries, including automotive, aerospace, medical, and electronics manufacturing. They are valued for their precision and accuracy, as well as their ability to handle large and complex workpieces. Mazak lathes are often used in conjunction with other machine tools, such as milling machines and grinders, to create finished components with high tolerances and surface finishes.
FAQs:
Here are some frequently asked questions (FAQs) about Mazak lathes:
What is a Mazak lathe?
A Mazak lathe is a type of CNC machine tool that is used for cutting and shaping materials, such as metal, plastic, and wood. It uses a computer-controlled cutting tool to remove material from a workpiece and create a desired shape and size.
What are the advantages of using a Mazak lathe?
Some of the advantages of using a Mazak lathe include high precision and accuracy, the ability to handle large and complex workpieces, and the ability to perform a wide range of cutting operations.
What types of materials can be machined on a Mazak lathe?
Mazak lathes can be used to machine a wide range of materials, including metals (such as steel, aluminum, and brass), plastics, and wood.
What is the difference between a Mazak lathe and a manual lathe?
The main difference between a Mazak lathe and a manual lathe is that a Mazak lathe is computer-controlled, while a manual lathe is operated manually by the operator. This means that a Mazak lathe can perform complex cutting operations with a high level of precision and accuracy, while a manual lathe is more limited in its capabilities.
What types of cutting operations can be performed on a Mazak lathe?
Mazak lathes can perform a wide range of cutting operations, including turning, drilling, boring, threading, facing, and taper turning.
What is the maintenance required for a Mazak lathe?
Regular maintenance is required for a Mazak lathe to ensure optimal performance and prevent breakdowns. This includes cleaning and lubricating the machine, inspecting and replacing worn parts, and performing regular calibration and alignment checks.
How can I learn to operate a Mazak lathe?
Training programs are available for operators and technicians who want to learn how to operate and maintain a Mazak lathe. These programs typically cover topics such as machine setup, programming, and troubleshooting.
